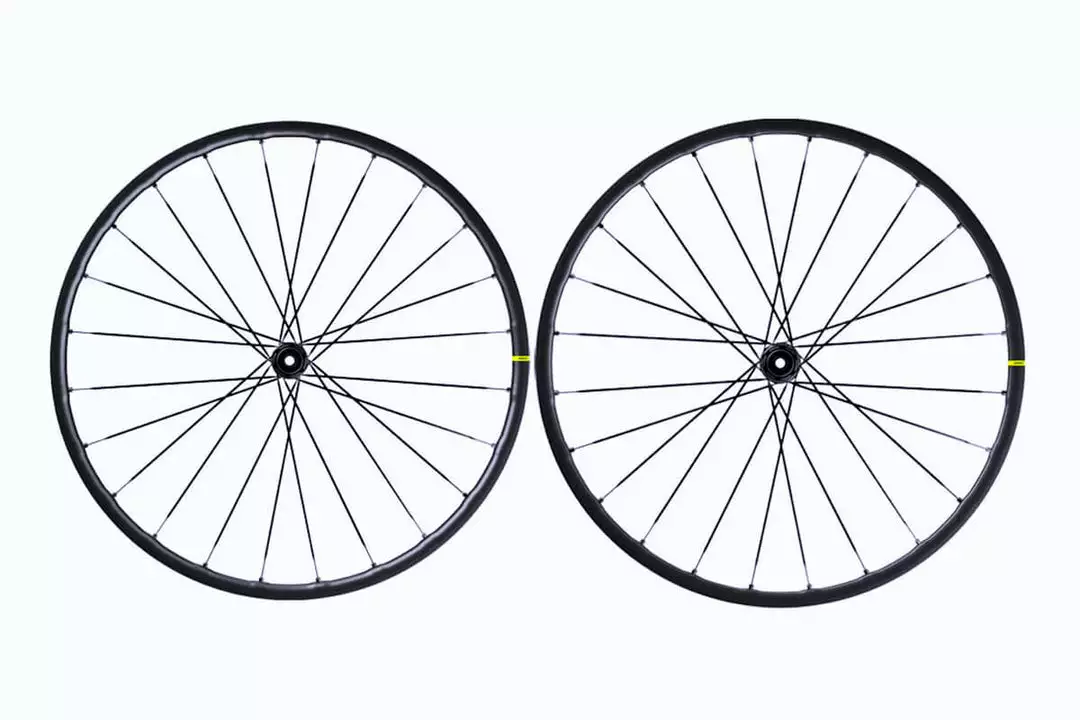

Wheels, Rims & Hubs Mavic Allroad SL DCL Wheelset

Mavic’s Allroad line has no preferences when it comes to the surface: rough roads, pave, bad tarmac, forest tracks or gravel roads – the durable aluminum wheels don’t mind. They playfully combine speed and control. Optimised for large-volume tires with 22mm rim width, this tubeless wheel is made for your next Allroad adventure.

22mm wide UST rims integrated for a smooth ride with a wide range of tubeless tires from 28-64mm

UST Road Tubeless lets you run lower tire pressure for comfort and control on rough roads

No tubes means less friction, better efficiency and grip, and pinch-flat protection

ISM4D rim weighs only 440g

Patented lightweight aero spokes

Automatic bearing preload (QRM Auto) requires no adjustment and guarantees long-term durability

Fore drilling doesn’t require the use of rim tape: 30g saved per wheel

17mm axle and new hub design

Specification

Use: Road, Gravel, Cyclocross Model: Allroad Wheel size: 28″ Rim type: Clincher Tubeless: yes ETRTO: 622 Bearings: Auto adjust sealed cartridge bearings (QRM Auto) Freehub system: Instant Drive 360 Freehub: 9-/10-/11-speed Rim inner width: 22mm Rim height: 22mm Hub axle system: Front: 10 x 100mm thru axle Rear: 12 x 142mm thru axle Spoke type: straight pull, elliptical aero, double butted (patented) Spokes: Front: 24 crossed 2, contactless Rear: 24 crossed 2, contactless Brake type: Disc Brake Brake system: Disc Center-Lock Recommended tyre sizes: 28 to 64 mm (1.1″ to 2.5″) Valve hole: Presta / SV 6.5mm ASTM Catergory: 2 (road and offroad with jumps less than 15cm) Recommended system weight max: 120 kg (Rider + Bike + Equipment) Weight (manufacturer information) Front: 740g Rear: 850g Set: 1.590g Material: Rim: Maxtal Aluminum Hub: Aluminum Freehub: Aluminum Spoke: Steel Nipples: Aluminum
